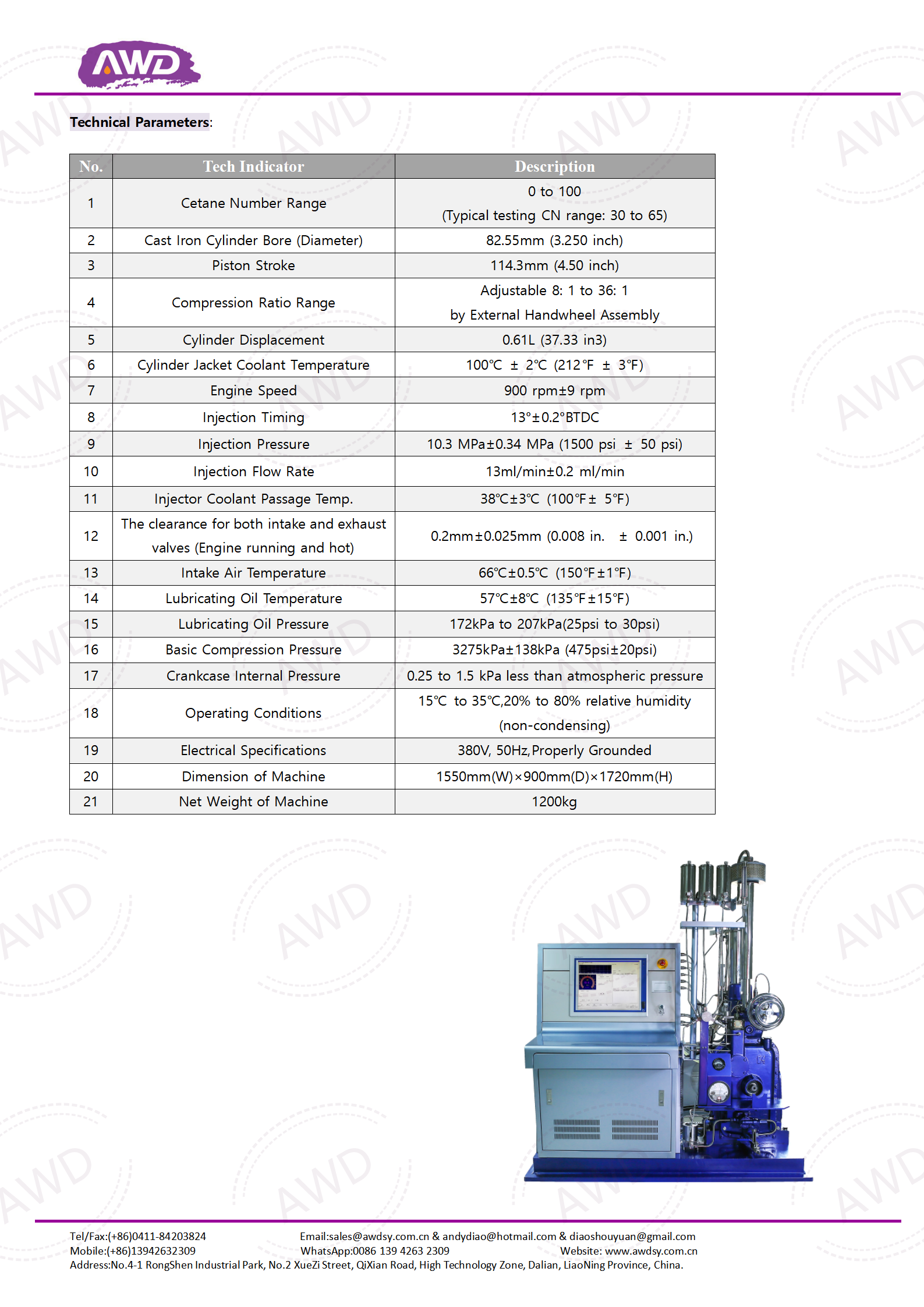

| Cetane Number Range | 0 to 100 (Typical testing CN range: 30 to 65) |
| Cast Iron Cylinder Bore (Diameter) | 82.55mm (3.250 inch) |
| Piston Stroke | 114.3mm (4.50 inch) |
| Compression Ratio Range | Adjustable 8: 1 to 36: 1 by External Handwheel Assembly |
| Cylinder Displacement | 0.61L (37.33 in3) |
| Cylinder Jacket Coolant Temperature | 100℃ ± 2℃ (212℉ ± 3℉) |
| Engine Speed | 900 rpm±9 rpm |
