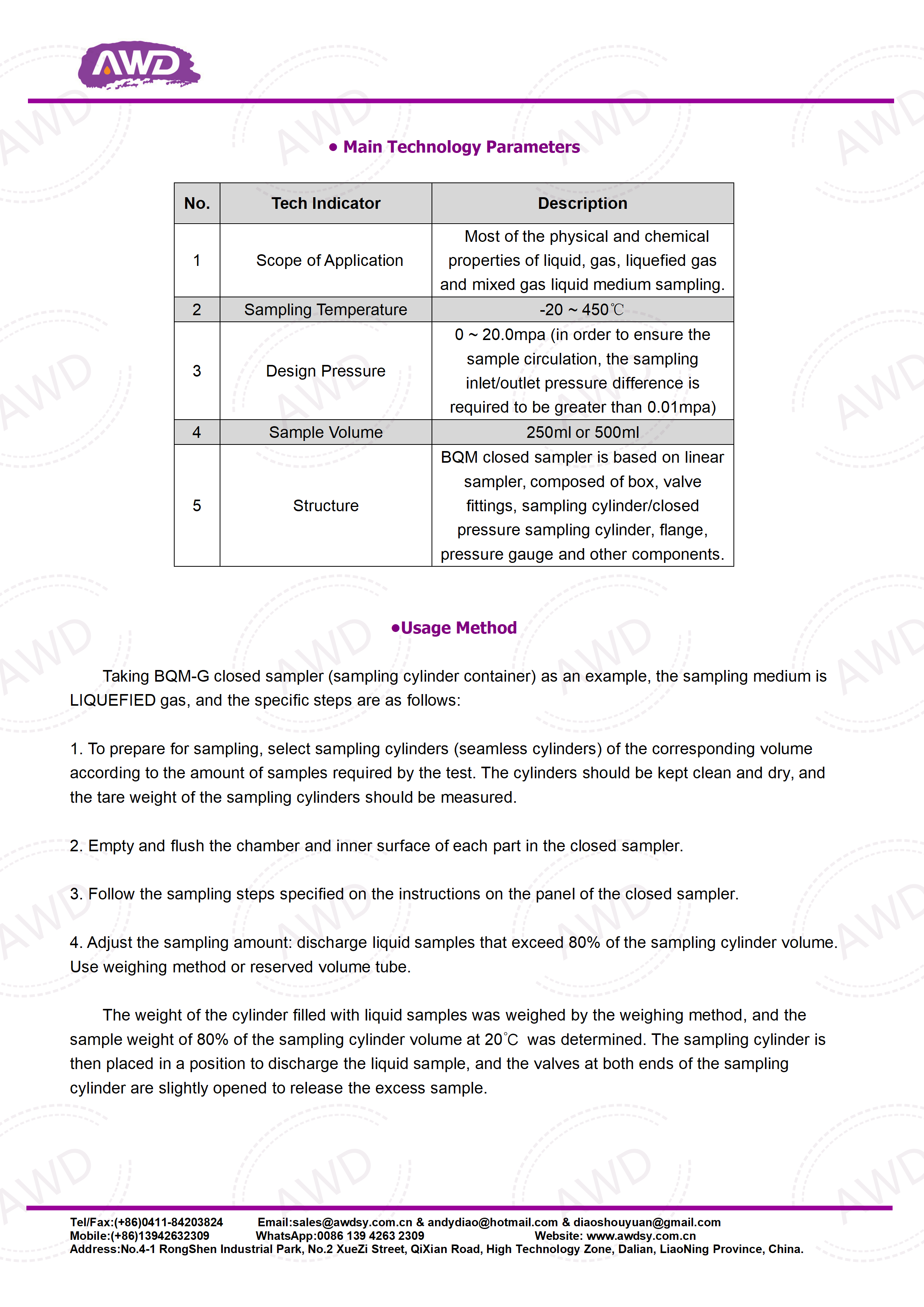

| Scope of Application | Most of the physical and chemical properties of liquid, gas, liquefied gas and mixed gas liquid medium sampling. |
| Sampling Temperature | -20 ~ 450℃ |
| Design Pressure | 0 ~ 20.0mpa (in order to ensure the sample circulation, the sampling inlet/outlet pressure difference is required to be greater than 0.01mpa) |
| Sample Volume | 250ml or 500ml |

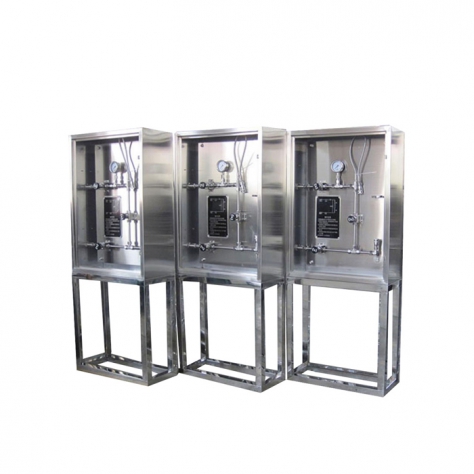

| Structure | BQM closed sampler is based on linear sampler, composed of box, valve fittings, sampling cylinder/closed pressure sampling cylinder, flange, pressure gauge and other components. |
